Folds in Seconds. Dual 180W Motors. 22 Miles of Range.

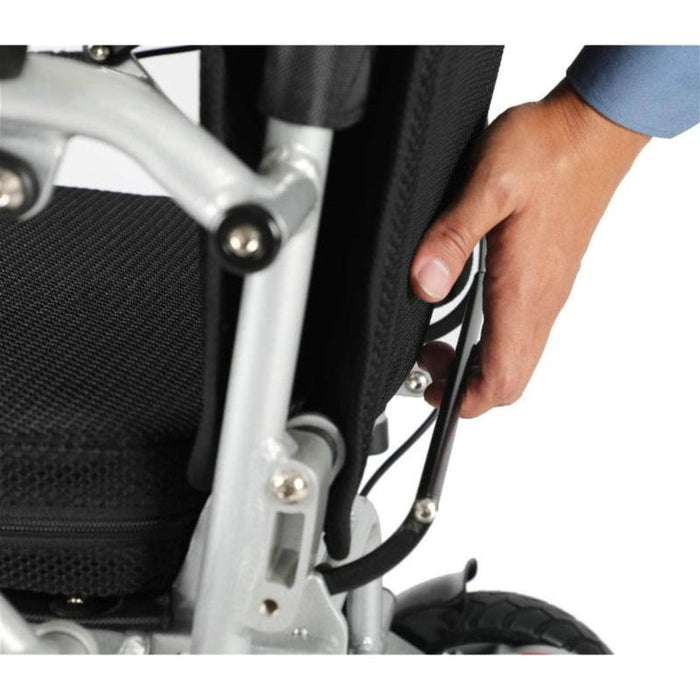

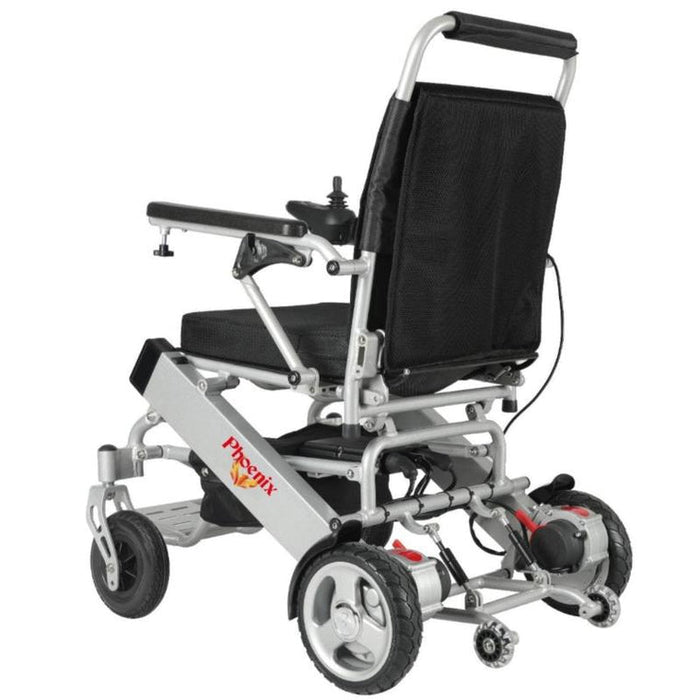

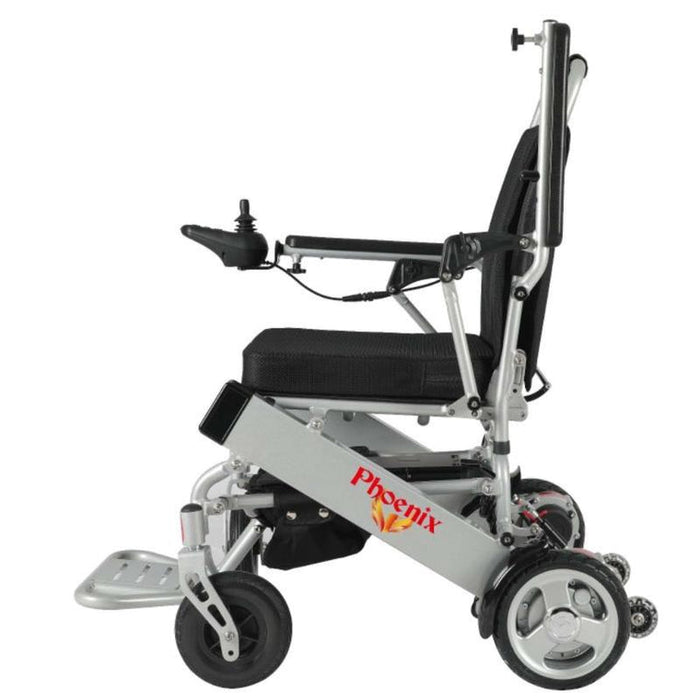

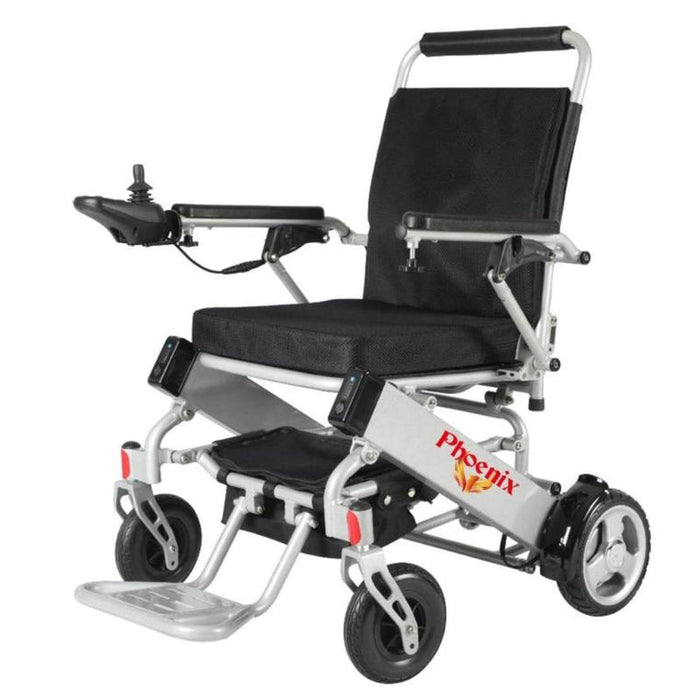

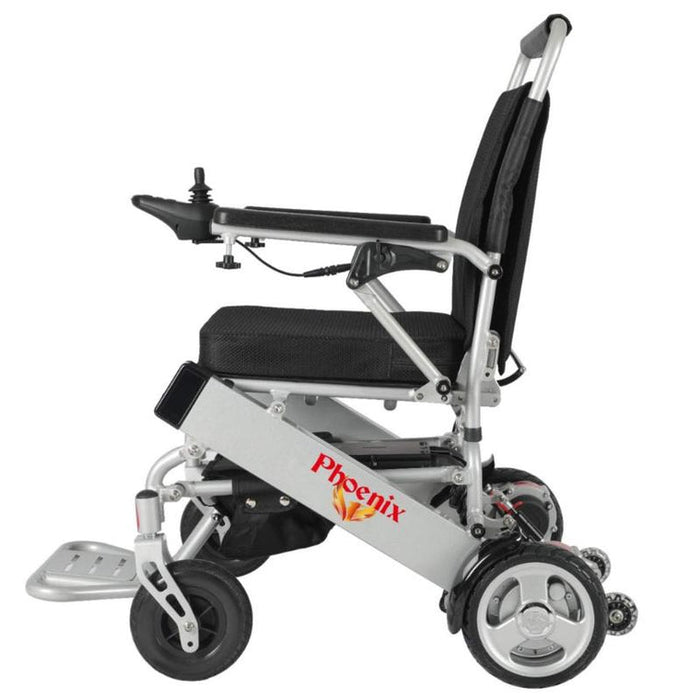

The Phoenix Folding Electric Wheelchair by Discover Your Mobility delivers serious performance in a lightweight, easy-to-transport package. Built from aircraft-grade aluminum alloy, it weighs just 44 lbs without batteries and 52 lbs fully loaded — yet carries up to 265 lbs with confidence. Dual 180W motors provide 360W of combined power for climbing ramps and hills, while the simple Easy Fold Clip collapses the entire chair to just 12.5" wide in seconds.
Dual 180W Motors. Posi-Traction Drive. Smart Braking.

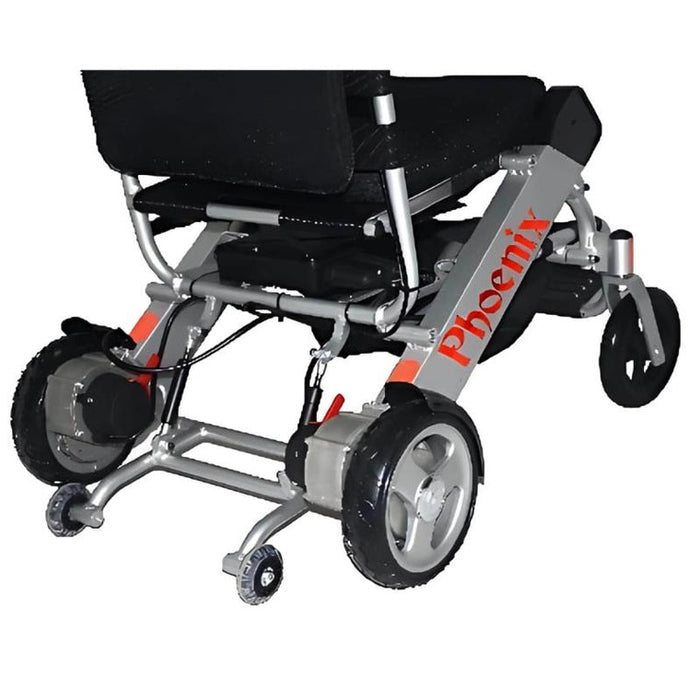

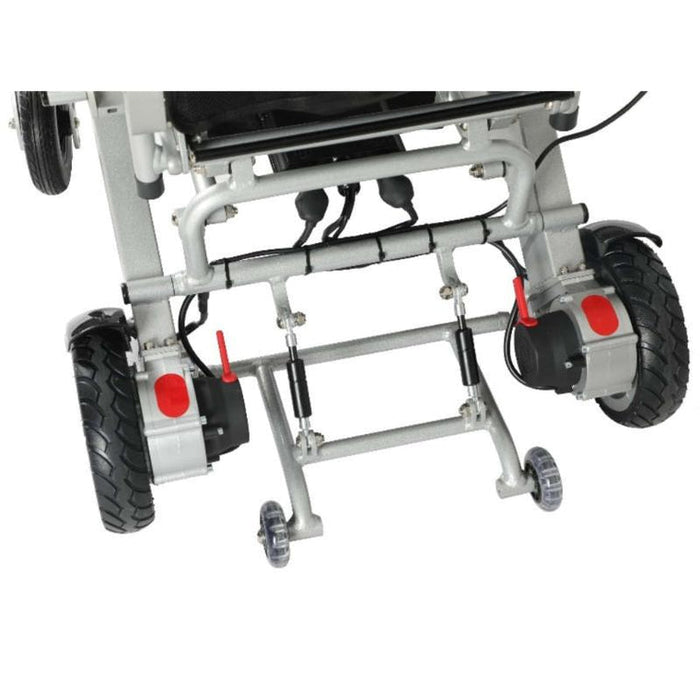

The Phoenix's Posi-Traction rear drive wheels deliver smooth, controlled performance on ramps, hills, and inclines. With 360W of total power from its dual motors, it handles grade changes confidently. The intelligent electromagnetic braking system kicks in the instant you release the joystick — automatic, smooth, and reliable every time. Anti-tip wheels provide additional stability on steeper inclines.
Quick-Release Battery. Airline Approved. Easy Charging.

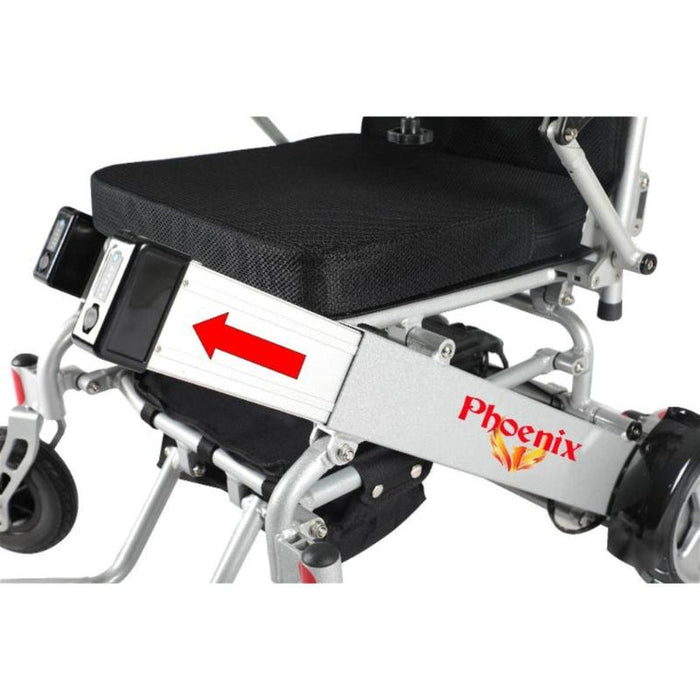

The Phoenix features an in-frame battery design — batteries sit inside the frame on both sides for balanced weight distribution. Press the quick-release button and the batteries slide out from a comfortable standing position — no bending, no reaching. Each battery has its own individual charge indicator so you always know your power status. Both batteries are airline approved, giving you freedom to travel by air and sea without battery restrictions.
Switchable Joystick. Five Speed Settings. Load-Bearing Armrests.

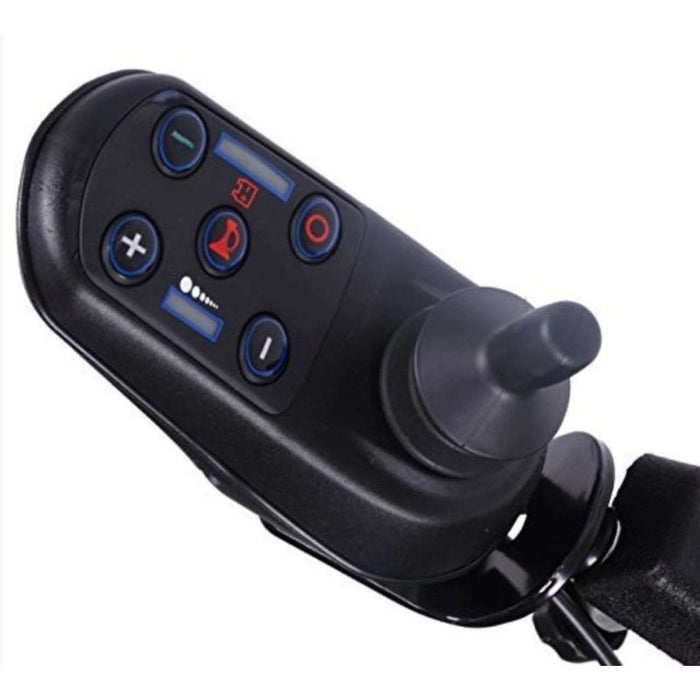

The joystick switches to either armrest in seconds — right or left, without tools. Five speed settings let you dial in your pace precisely. The Phoenix comes standard with strong lateral arm supports that bear your full body weight during transfers — armrests that won't bend or wobble when you need to push yourself up. They flip up and out of the way for side-entry transfers as well.
Compact. Measured. Ready to Go.

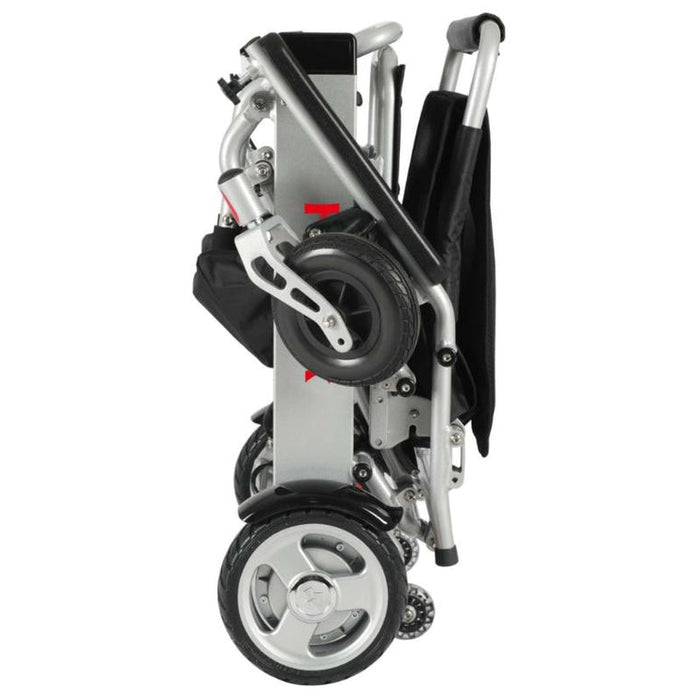

The Phoenix folds to 12.5" × 24" × 29" — a genuinely compact footprint that fits most car trunks. The 20" memory foam seat cushion with adjustable lumbar support and comfort straps keeps you comfortable on longer outings. Fully assembled out of the box — no setup, no tools required.
What's Included
- Phoenix folding electric wheelchair (aircraft aluminum)
- Two airline-approved lithium-ion batteries
- Charger (on-board and off-board capable)
- Joystick controller (left/right configurable)
- 20" memory foam seat cushion with washable mesh cover
Specifications
| Specification |
Detail |
| Folded (L×W×H) |
25" × 12.5" × 29" |
| Unfolded (L×W×H) |
37" × 24.5" × 37" |
| Seat Dimensions |
19" W × 17" D |
| Weight Capacity |
265 lbs |
| Motor |
2 × 180W Brushless DC |
| Battery |
2 × Li-ion (24V, airline approved) |
| Front Tire |
7" |
| Rear Tire |
8" |
| Weight (without battery) |
44 lbs |
| Weight (with 2 batteries) |
52 lbs |
| Max Climbing Grade |
14° |
| Max Driving Range |
22 miles (2 batteries) |
| Max Speed |
3.75 mph |
| Turning Radius |
32" |
| Highest Obstacle |
1.57" |
| Brake |
Intelligent Electromagnetic |
| Color |
Silverado Silver only |
Limited Warranty – Discover Your Mobility
| Component |
Coverage |
| Batteries & Joysticks |
6 Months |
| Spare Parts, Motors & Frames |
1 Year |
| Casters, Rear Wheels, Arm Pads & Similar Wear Items |
30 Days |
This warranty covers defects in materials and workmanship under normal use from the original purchase date. It does not cover damage from accidents, misuse, unauthorized modifications, or normal wear beyond the periods above.
