500 lbs. 8 mph. Front and Rear Suspension. 12.5" Flat-Free Tires.

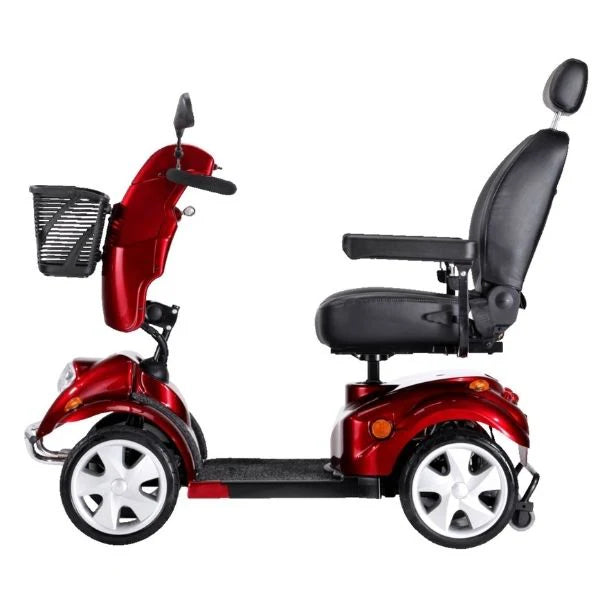

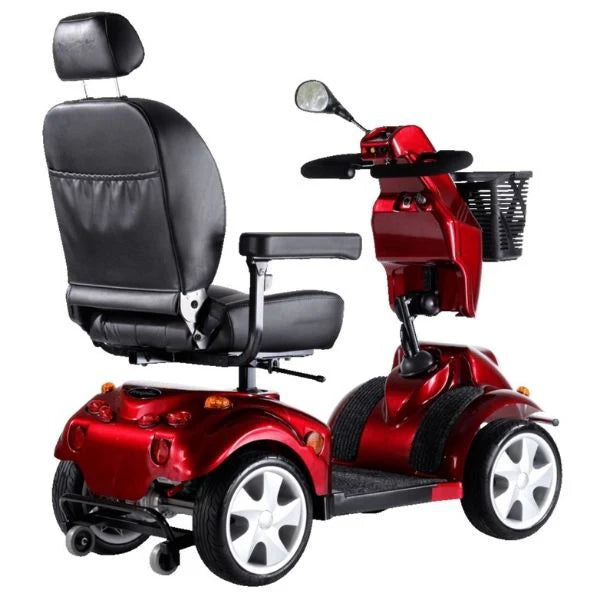

The FreeRider FR 510F II 4-Wheel Heavy Duty Mobility Scooter is one of the most capable heavy-duty mobility scooters available — combining a 500 lb weight capacity, an 8 mph top speed, full front and rear shock absorption, and 12.5" PU flat-free tires for a smooth, planted ride across every surface type. Whether navigating daily errands or longer outdoor outings, the FR 510F II delivers the power and comfort to go further.

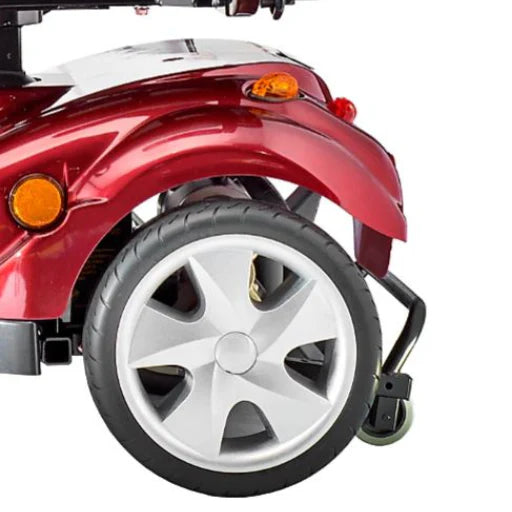

Full Suspension. 12.5" PU Flat-Free Tires.
The FR 510F II’s front and rear shock absorbers work with large 12.5" non-marking PU flat-free tires to smooth out bumps, sidewalk cracks, and surface transitions. No flat-tire risk, no maintenance — just reliable, cushioned performance across pavement, paths, and mild outdoor terrain. The rear-wheel drive system with a 24V sealed mini-transaxle provides the torque needed for consistent performance at higher weights.

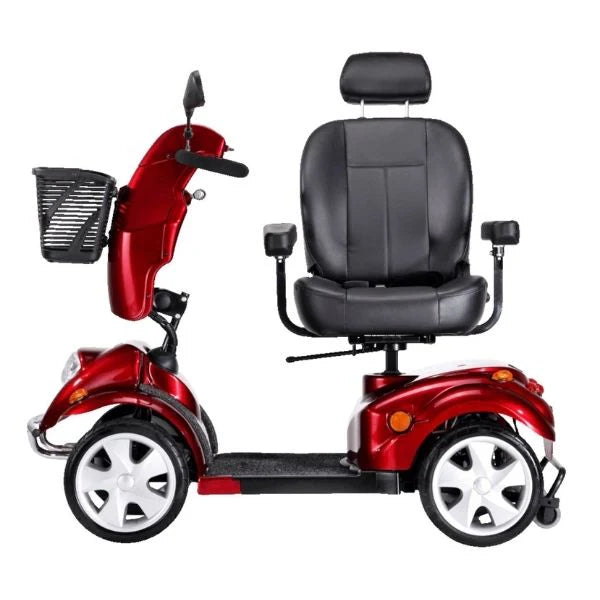

Adjustable Comfort Seating. 20" × 20" Seat.
The 20" wide × 20" deep padded seat provides generous space and comfort. 360° rotation, height adjustment, and flip-up armrests make transfers and positioning easy. The ergonomic delta tiller accommodates users with limited joint flexibility, and the tiller angle adjusts for a personalized driving position. The charger port and circuit breaker are easily accessible, keeping maintenance simple.
8 mph. Up to 20 Miles. LED Safety Package.
A top speed of 8 mph and a range of up to 20 miles per charge make the FR 510F II one of the fastest and longest-range heavy-duty scooters in its class. Built-in headlight, taillights, and turn signals provide full visibility day and night, and the automatic microprocessor-based motor controller delivers smooth, consistent acceleration and braking.
What’s Included
- FreeRider FR 510F II scooter (rear-wheel drive)
- Dual 33Ah U1 Lead Acid batteries (standard)
- 4-amp off-board charger
- Adjustable delta tiller
- 20" × 20" padded seat with armrests
- LED headlight, taillights, and turn signals

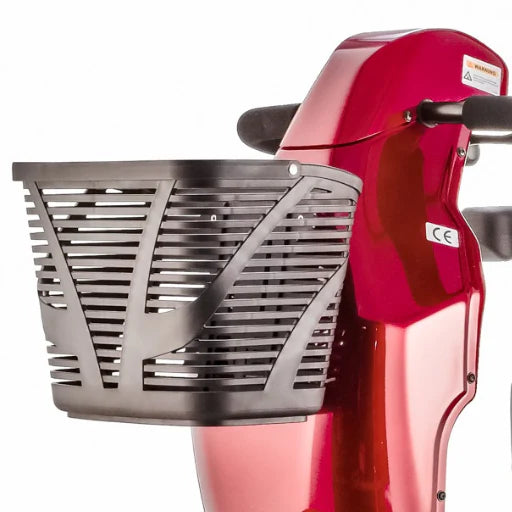

- Front basket
Specifications
| Specification |
Detail |
| Overall Length |
55" |
| Overall Width |
22" |
| Weight Capacity |
500 lbs |
| Weight (Scooter) |
170.3 lbs |
| Weight (Scooter + Batteries) |
285.5 lbs |
| Battery |
2 × 33Ah U1 Lead Acid (standard) / 2 × 50Ah AGM (upgrade) |
| Battery Charger |
4-amp off-board |
| Max Speed |
8 mph |
| Range |
Up to 20 miles |
| Ground Clearance |
3.43" |
| Turning Radius |
64" |
| Max Incline |
6° |
| Front / Rear Wheels |
12.5" / 12.5" PU flat-free |
| Drive System |
Rear-wheel drive, 24V DC motor, sealed mini-transaxle |
| Suspension |
Front and Rear Shock Absorber |
| Standard Color |
Red |
| Seat Dimensions |
20" W × 20" D |
FreeRider Warranty
| Coverage |
Period |
| Structural Frame |
3 Years |
| Motor, Transaxle, Brake Assembly & Electrical |
1 Year |
| Lithium Battery/Batteries |
1 Year |
| All Plastic Parts & Chassis Hooks |
30 Days |
Warranty does not cover normal wear and tear, shipping damage, alterations, modifications, misuse, neglect, or abuse.
FreeRider FR 510F II User Manual
